CNC Grinding

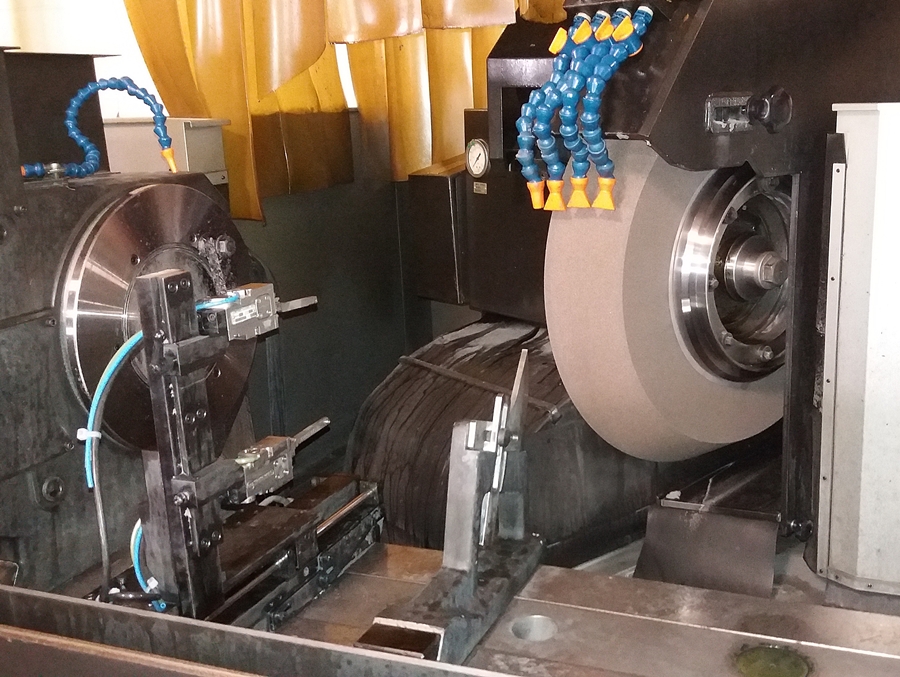

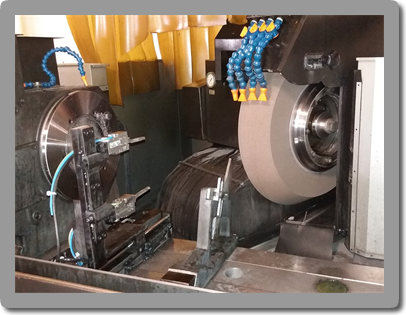

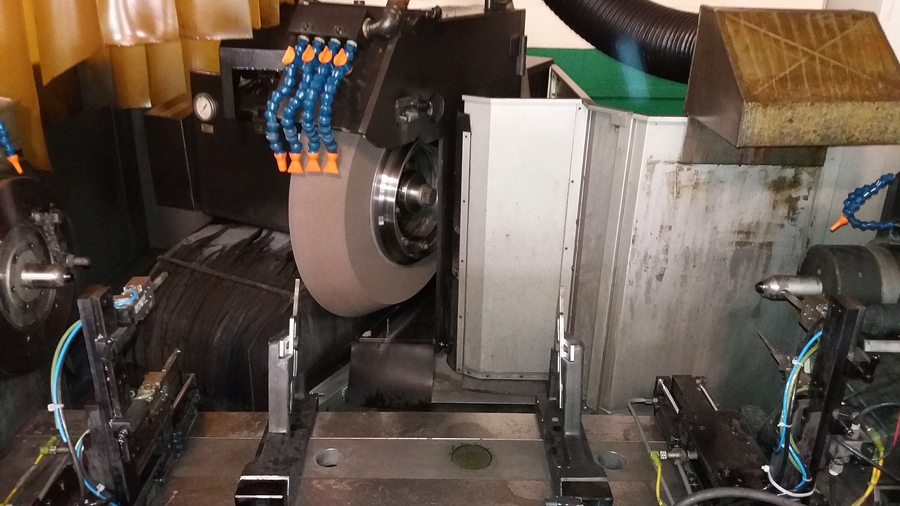

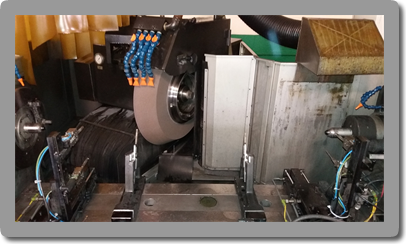

Our grinders use world class in-process gaging systems to control accuracy.

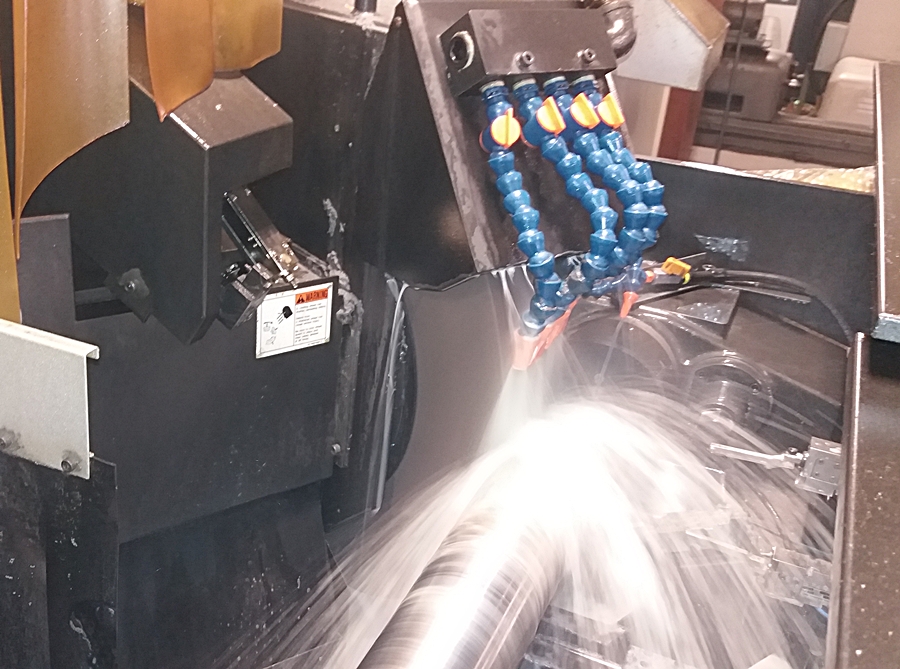

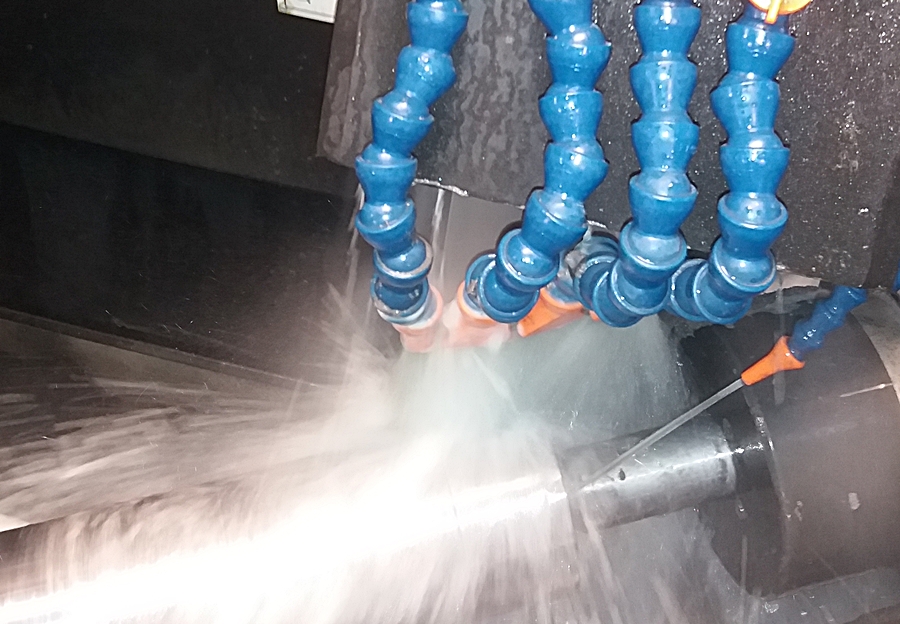

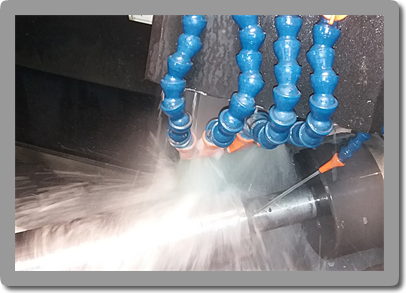

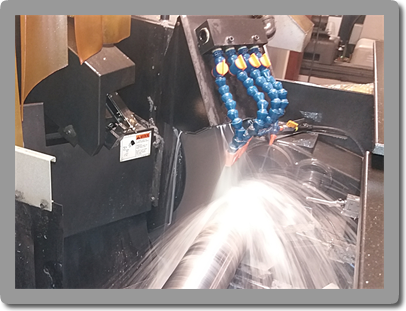

A serious consideration in grinding of any type is controlling the heat generated at the contact points between the metal being sized or shaped and the grinding wheel. Coolant, wheel speed, and depth of cut all contribute to controlling the heat of the part. Grinding permits very accurate tolerances of 0.0001".

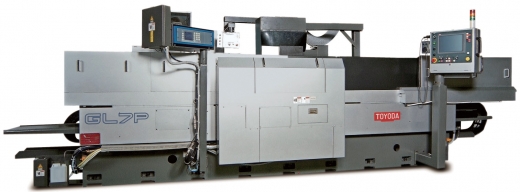

GL7 is a cylindrical grinding machine for dedicated processes in a high-production environment. It features a hydrostatic wheelhead bearing and way system, and the patented TOYODA STAT® BEARING and floating plate to ensure high accuracy and positioning

Swing Ø 15.7" (400 mm)
Optional Swing Ø 19.7" (500 mm)
Distance Between Centers (GL7A/P-63) 24.8" (630 mm)
Distance Between Centers (GL7A/P-100) 39.4" (1,000 mm)
Distance Between Centers (GL7A/P-160) 63" (1,600 mm)
Distance Between Centers (GL7A/P-250) 98.4" (2,500 mm)
Maximum Load Between Centers 660 lb (300 kg)
Wheel Surface Speed 8,860 SFPM (45 m/s)
Optional Wheel Surface Speed 11,800 SFPM (60 m/s)

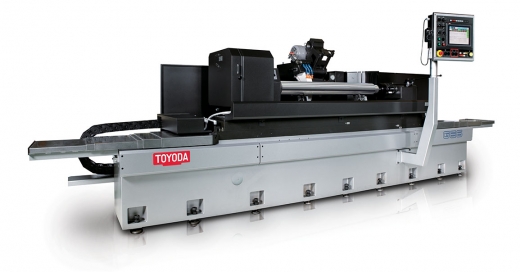

GE6 is a cylindrical grinding machine designed for large workpieces. It features a hydrostatic wheelhead bearing and way system, handscraped precision surfaces, and the patented TOYODA STAT® BEARING and floating plate to ensure high accuracy and positioning. The GE6 is made from a single Meehanite casting for ultimate thermal stability.

Swing Ø 22.0" (560 mm)
Distance Between Centers (GE6A-150) 59.0" (1,500 mm)
Distance Between Centers (GE6P-160II, GE6P-160II Plus) 63.0" (1,600 mm)
Distance Between Centers (GE6P-250, GE6P-250II, GE6P-250II Plus) 98.4" (2,500 mm)
Distance Between Centers (GE6P-320II, GE6P-320II Plus) 125.9" (3,200 mm)
Distance Between Centers (GE6P-400II, GE6P-400II Plus) 157.4" (4,000 mm)
Maximum Load Between Centers 1,100 lb (500 kg)
Wheel Surface Speed 6,500 SFPM (33 m/s)
