Precision CNC machining gives us an advantage in reproducing high volume parts.
Creative solutions and impressive manufacturing skills define the services we provide for our customers. Our 4th Axis machining centers are used for manufacturing close tolerance parts.
Creative solutions and impressive manufacturing skills define the services we provide for our customers. Our 4th Axis machining centers are used for manufacturing close tolerance parts.

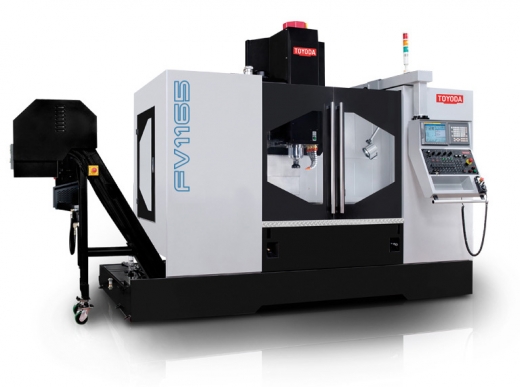

The FV1165 is a heavy-duty vertical machining center that features four Y-axis box guideways, a Meehanite cast iron base, and a high-performance spindle.
Table Size 51.2" x 25.6" (1,300 mm x 650 mm)
X-axis Travel 43.3" (1,100 mm)
Y-axis Travel 25.6" (650 mm)
Z-axis Travel 23.6" (600 mm)
Maximum Table Load 2,425 lb (1,100 kg)
Distance from Table Top to
Spindle Face 4.9" to 28.5" (125 mm to 725 mm)
Spindle Drive Motor 25 HP (18.5 kW) for 30 min. / 20 HP (15 kW) cont.
Spindle Output Torque 339 ft-lb (460 Nm)
Spindle Taper CAT40, CAT50
Spindle Speed CAT40: 8,000 RPM
CAT50: 6,000 RPM
Spindle Type Geared head
Rapid Feedrate (X and Y axes) 1,181 ipm (30 m/min)
Rapid Feedrate (Z axis) 945 ipm (24 m/min)
Maximum Cutting Feedrate 945 ipm (24 m/min)
Tool Storage Capacity CAT40: 32 Standard
Table Size 51.2" x 25.6" (1,300 mm x 650 mm)
X-axis Travel 43.3" (1,100 mm)
Y-axis Travel 25.6" (650 mm)
Z-axis Travel 23.6" (600 mm)
Maximum Table Load 2,425 lb (1,100 kg)
Distance from Table Top to
Spindle Face 4.9" to 28.5" (125 mm to 725 mm)
Spindle Drive Motor 25 HP (18.5 kW) for 30 min. / 20 HP (15 kW) cont.
Spindle Output Torque 339 ft-lb (460 Nm)
Spindle Taper CAT40, CAT50
Spindle Speed CAT40: 8,000 RPM
CAT50: 6,000 RPM
Spindle Type Geared head
Rapid Feedrate (X and Y axes) 1,181 ipm (30 m/min)
Rapid Feedrate (Z axis) 945 ipm (24 m/min)
Maximum Cutting Feedrate 945 ipm (24 m/min)
Tool Storage Capacity CAT40: 32 Standard

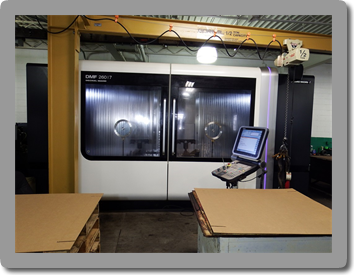

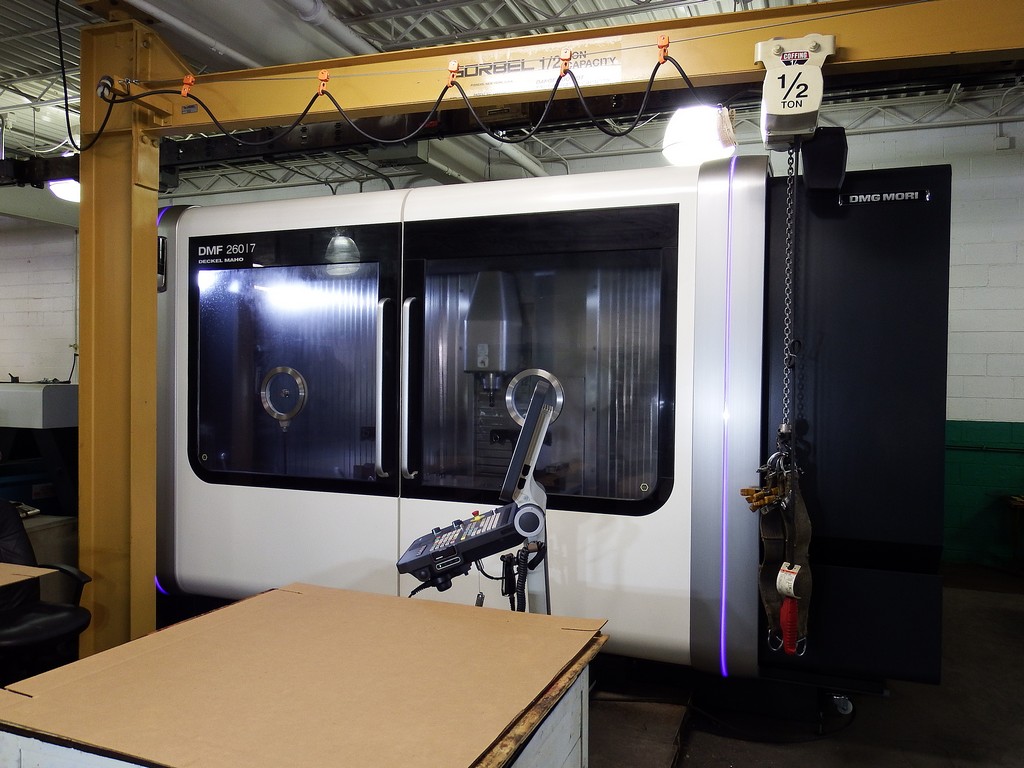

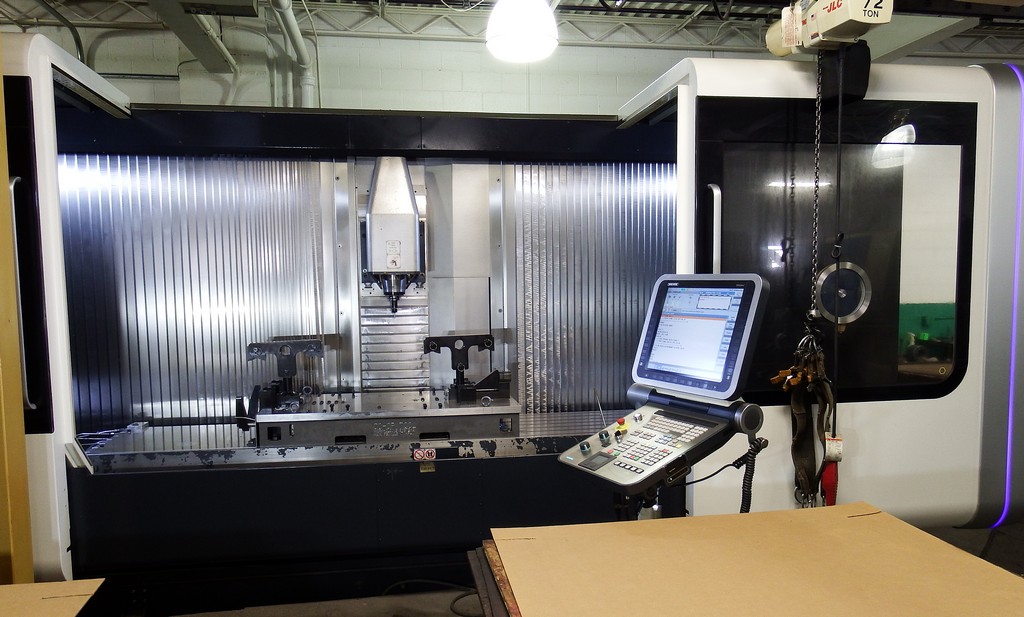

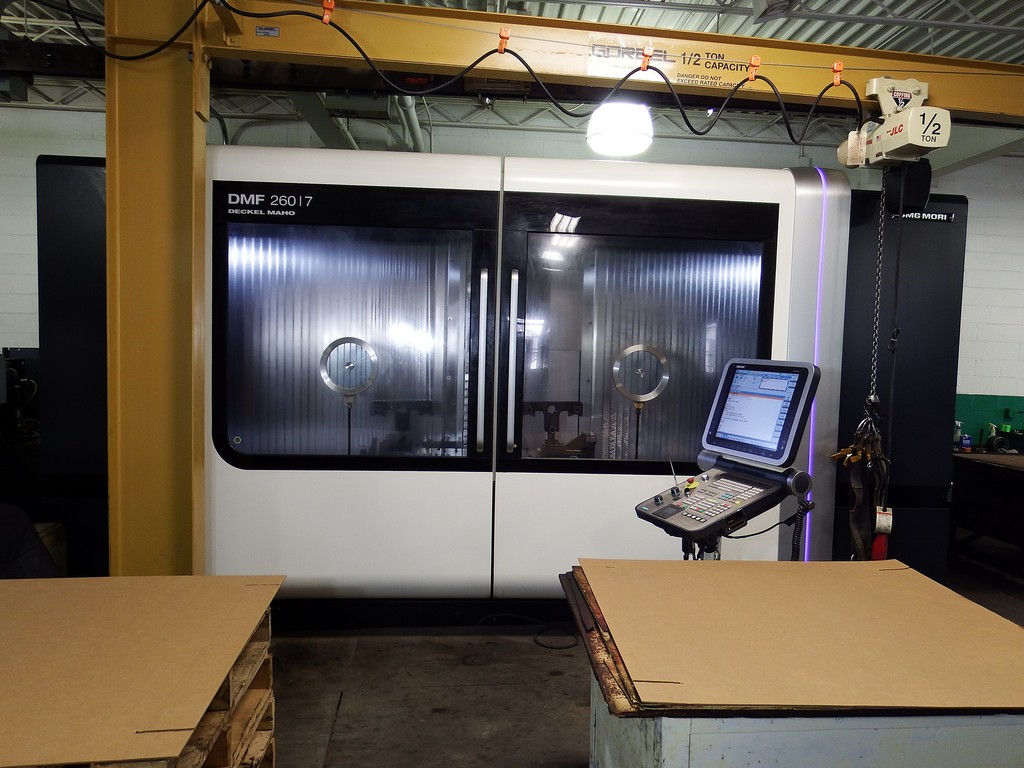

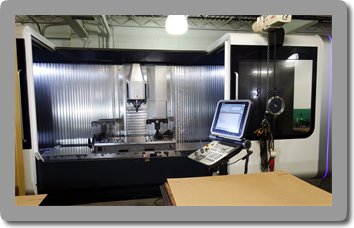

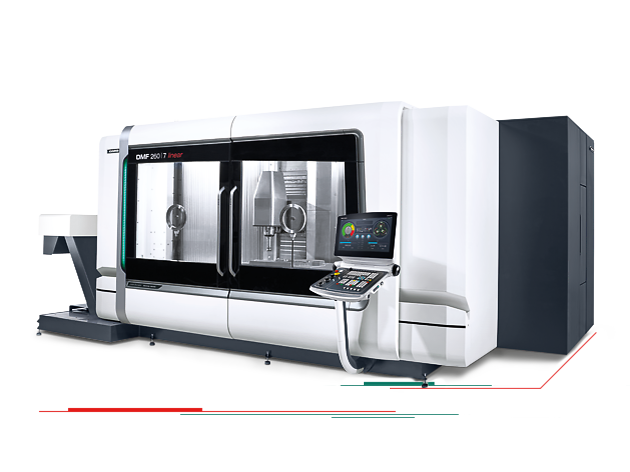

DMF 260-7 linear Mill
Travelling column machine with B-axis for highest flexibility and productivity
Max. X-axis travel
102.4 in.
Max. Y-axis travel
27.6 in.
Max. Z-axis travel
27.6 in.
Max. table load
4,740 lbs.
Table length
114.2 in.
Table width
27.6 in.
Clearance
Max. X-axis travel
102.4 in.
Max. Y-axis travel
27.6 in.
Max. Z-axis travel
27.6 in.
Table dimensions
Max. table load
4,740 lbs.
Table length
114.2 in.
Table width
27.6 in.
Workpiece dimensions
Max. workpiece height
21.7 in.
Spindle
Standard rotational speed
8,000 rpm
Max. rotational speed (option)
20,000 rpm
Power (100% power-on time)
18.1 hp.
Torque (100% power-on time)
62.7 ft./lbs.
Tool magazine
Capacity (standard)
30
Max. capacity
120
Rapid transverse
Max. X-axis
131.2 ft/min
Max. Y-axis
131.2 ft/min
Max. Z-axis
131.2 ft/min
CELOS with SIEMENS
21,5" ERGOline Operation Panel with CELOS, Sinumerik 840D sl, Multi-Touch Display and Tactile Control Keys
21,5" ERGOline Operation Panel with CELOS, Sinumerik 840D sl, Multi-Touch Display and Tactile Control Keys
Modern Control Functions - Enabling Industry 4.0
Our combination of a large display area, multi-modal Input options and APP capabilities ensures efficient machine operation, even when fast production changes, supporting First-Time-Right-Production of one-off items.
Best Operator Ergonomy with modern control functionality
Optimal overview of order information and programs possible with 21,5" display area
Intuitive and direct interaction possibilities, supporting multi-touch as well as tactile control input
Broad Programming Support through ShopMill/ShopTurn Environment, Cycles and Simulation Functions
Travelling column machine with B-axis for highest flexibility and productivity
Max. X-axis travel
102.4 in.
Max. Y-axis travel
27.6 in.
Max. Z-axis travel
27.6 in.
Max. table load
4,740 lbs.
Table length
114.2 in.
Table width
27.6 in.
Clearance
Max. X-axis travel
102.4 in.
Max. Y-axis travel
27.6 in.
Max. Z-axis travel
27.6 in.
Table dimensions
Max. table load
4,740 lbs.
Table length
114.2 in.
Table width
27.6 in.
Workpiece dimensions
Max. workpiece height
21.7 in.
Spindle
Standard rotational speed
8,000 rpm
Max. rotational speed (option)
20,000 rpm
Power (100% power-on time)
18.1 hp.
Torque (100% power-on time)
62.7 ft./lbs.
Tool magazine
Capacity (standard)
30
Max. capacity
120
Rapid transverse
Max. X-axis
131.2 ft/min
Max. Y-axis
131.2 ft/min
Max. Z-axis
131.2 ft/min
CELOS with SIEMENS
21,5" ERGOline Operation Panel with CELOS, Sinumerik 840D sl, Multi-Touch Display and Tactile Control Keys
21,5" ERGOline Operation Panel with CELOS, Sinumerik 840D sl, Multi-Touch Display and Tactile Control Keys
Modern Control Functions - Enabling Industry 4.0
Our combination of a large display area, multi-modal Input options and APP capabilities ensures efficient machine operation, even when fast production changes, supporting First-Time-Right-Production of one-off items.
Best Operator Ergonomy with modern control functionality
Optimal overview of order information and programs possible with 21,5" display area
Intuitive and direct interaction possibilities, supporting multi-touch as well as tactile control input
Broad Programming Support through ShopMill/ShopTurn Environment, Cycles and Simulation Functions
CNC Mills
© 2018 http://www.kandgmachine.com. All Rights Reserved.

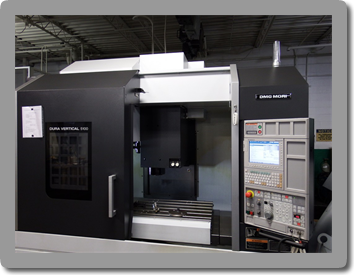

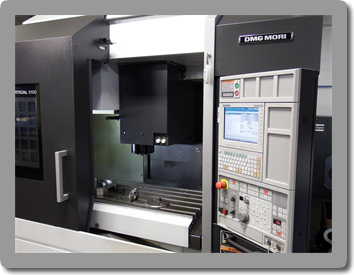

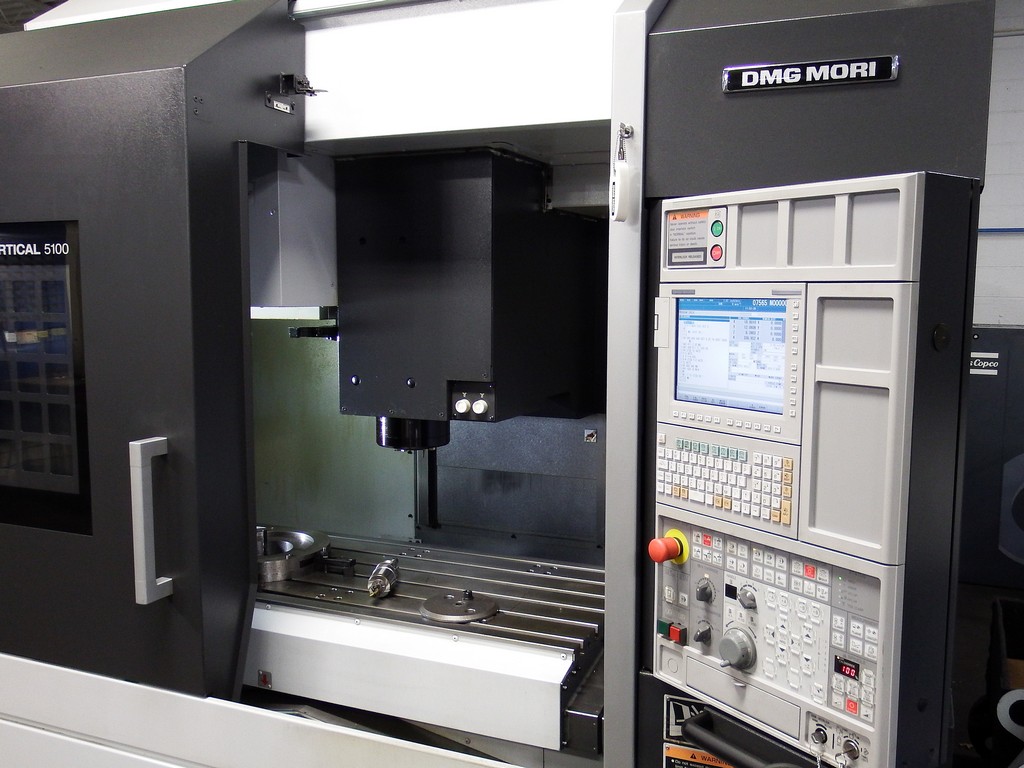

DMG Mori

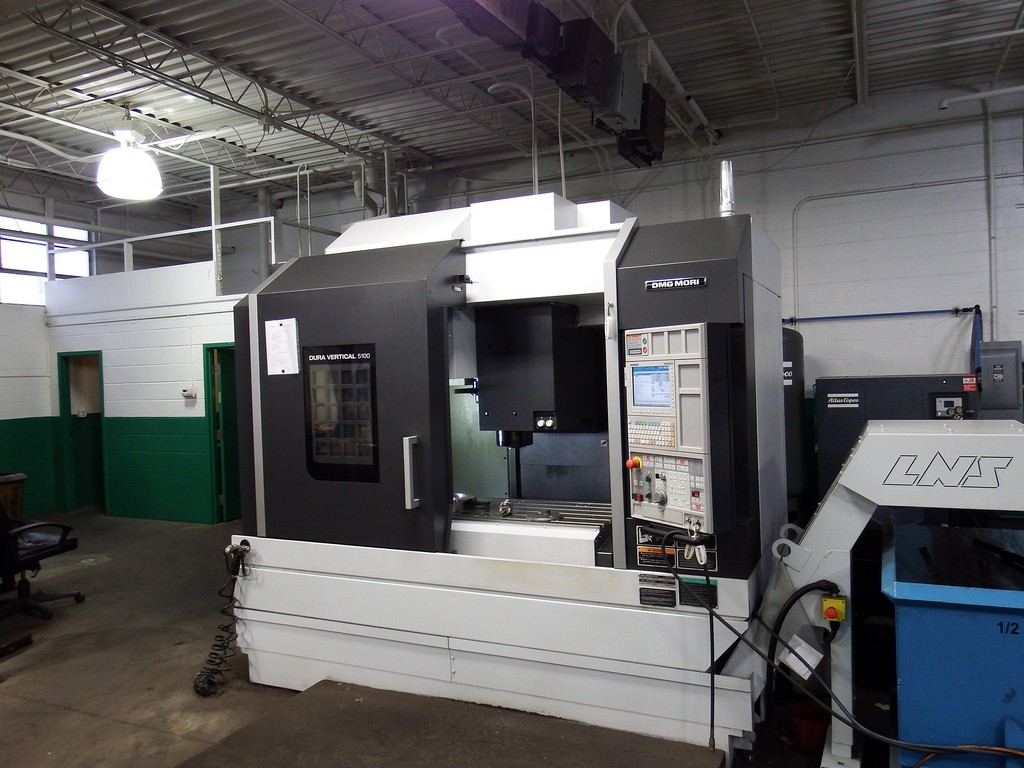

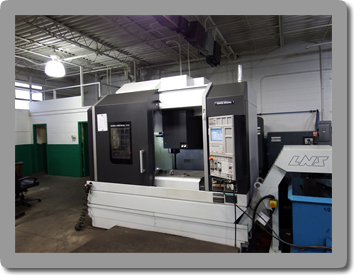

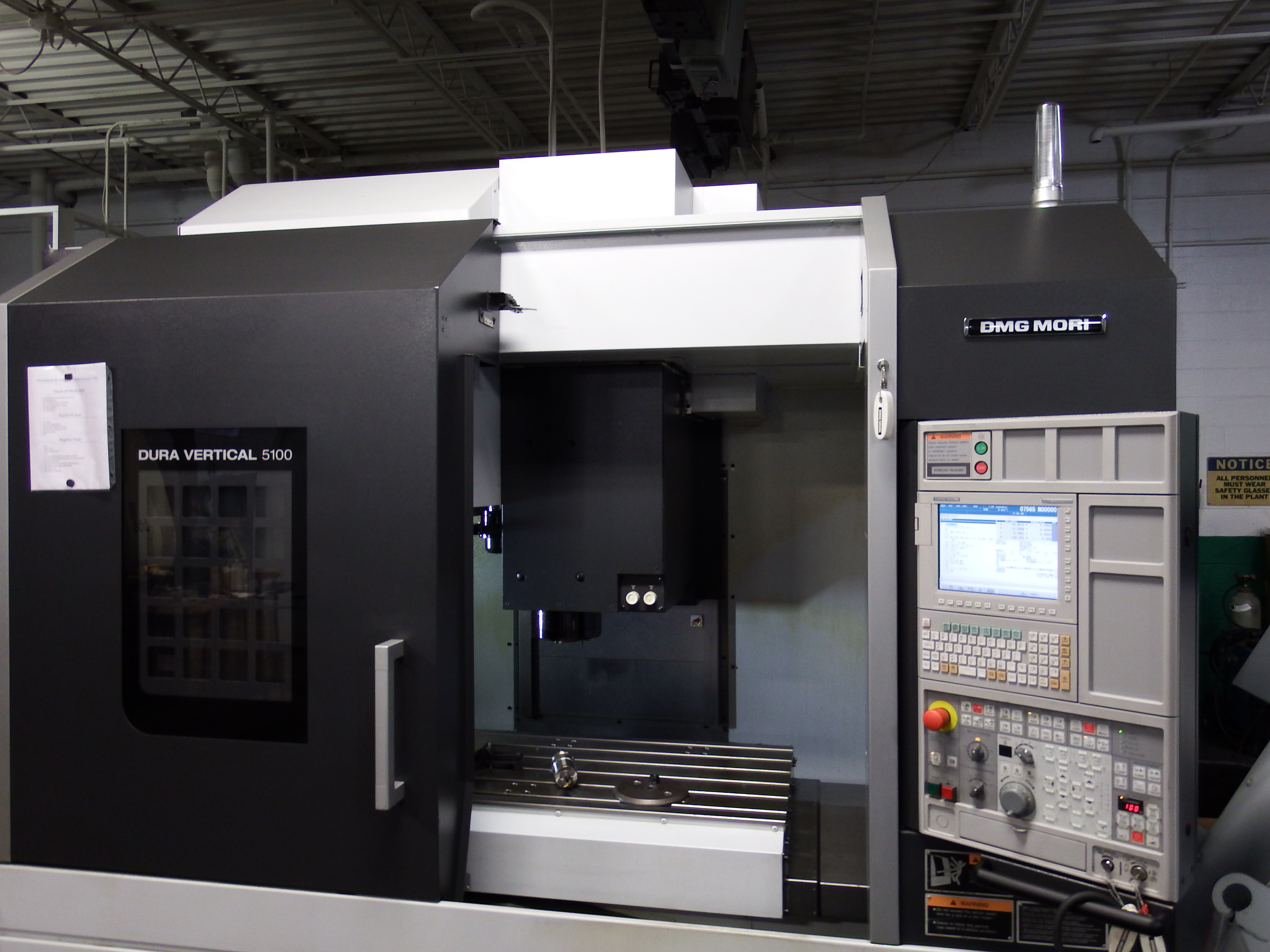

Dura Vertical 5100
Clearance
Max. X-axis travel
41.3 in.
Max. Y-axis travel
20.9 in
Max. Z-axis travel
20.1 in
Table dimensions
Max. table load
2,646 lbs
Table length
53.1 in.
Table width
23.6 in.
Workpiece dimensions
Max. workpiece height
20.1 in.
Spindle
Standard rotational speed
15,000 rpm
Max. rotational speed (option)
20,000 rpm
Power (100% power-on time)
34.9 hp.
Torque (100% power-on time)
241.2 ft./lbs.
Tool magazine
Capacity (standard)
30
Max. capacity
90
Rapid transverse
Max. X-axis
1181.1 in/min
Max. Y-axis
1181.1 in/min
Max. Z-axis
1181.1 in/min
Dura Vertical 5100
Clearance
Max. X-axis travel
41.3 in.
Max. Y-axis travel
20.9 in
Max. Z-axis travel
20.1 in
Table dimensions
Max. table load
2,646 lbs
Table length
53.1 in.
Table width
23.6 in.
Workpiece dimensions
Max. workpiece height
20.1 in.
Spindle
Standard rotational speed
15,000 rpm
Max. rotational speed (option)
20,000 rpm
Power (100% power-on time)
34.9 hp.
Torque (100% power-on time)
241.2 ft./lbs.
Tool magazine
Capacity (standard)
30
Max. capacity
90
Rapid transverse
Max. X-axis
1181.1 in/min
Max. Y-axis
1181.1 in/min
Max. Z-axis
1181.1 in/min
